TOKYO SANKEI BUILDING

BUILDING OUTLINE

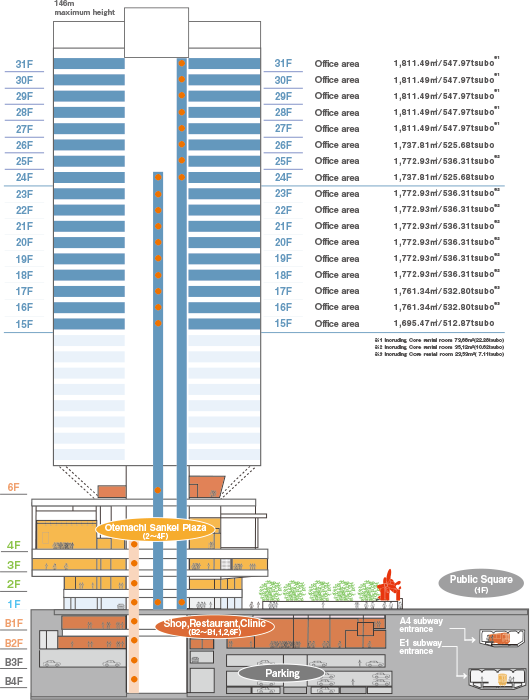

Upper Level Office Zone

The middle and high floors are approximately 530 tsubo of well-shaped space. Flexible layout is possible.

Metro Square
2F～4F Otemachi Sankei Plaza

Eleven large and small rental meeting rooms cover a wide range of your needs like various conferences, meetings, exhibitions and corporate parties.

B2〜1,2,6F Shops,Restaurants,Clinic

The building offers stores, restaurants and clinics (general practitioner and dentist) to help improve the convenience of workers.

outline img

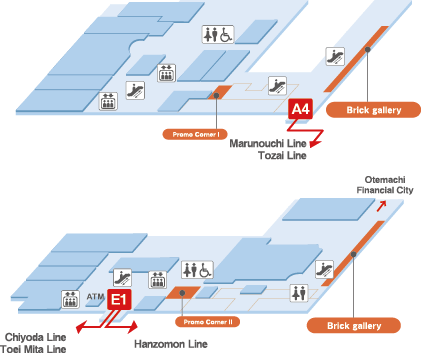

Exit guidance
outline img
outline img
  • Property Outline
    Location
    1-7-2 Otemachi, Chiyoda-ku, Tokyo
    Completion
    First phase construction September 2000,
    Second phase construction September 2002
    Building owners
    The Sankei Building Co., Ltd.
    Design supervision
    Mitsubishi Estate Co., Ltd.
    Architect and Contractor
    Takenaka Corporation
    Construction
    Takenaka Corporation and Kitano Construction Corp joint venture
    Site area
    6,262.42㎡
    Zoning district
    Commercial zone
    Fire protection district
    Fire preventive zone
    Utility and function
    Office, hall, retail／service establishment
    Structure type
    Steel construction, steel-frame reinforced concrete structure and reinforced concrete structure
    Number of floors
    4 underground floors, 31 above ground floors and 2 penthouse floors
    Maximum height
    146ｍ
    Building area
    2,958㎡
    Building coverage ratio
    47.24%
    Total floor area
    83,298.65㎡
    Total floor space for lease
    75,144㎡
    Floor space index
    1,199.93%
    Floor height
    3,950mm（standard floor）
    Exterior finishing
    Aluminum glass curtain wall, Low emissivity insulating glass（Low-e type）
    Parking area capacity
    196 spaces（Drive-in type 116 spaces, mechanical type 80 spaces）
  • Facilities Outline
    ・Electric installation
    Power service
    66 kV 2-circuit loop distribution
    Emergency power generator
    Gas turbine system For emergency, security,
    and tenants’ use（Oil tank 55,000 liters total）
    Electric lighting
    F Average illuminance 700 Lx（Hf inverter control）
    Receptacle load
    60VA／㎡
    Security
    Card-key system
    Emergency Facilities
    Fire alarm, smoke detection system, emergency broadcast system,
    sprinklers, etc
    ・Other settings
    Bei elevator
    16 passenger elevators, 2 emergency elevators and 1 combined passenger/
    freight use elevator
  • Outlines of Standard Floor
    Standard floor area
    Office floor：1,737㎡ on the middle and 1,736㎡on the upper floors
    Core room：35㎡ on the middle and 73㎡ on the upper floors
    Floor load
    Floor load Office　500kg／㎡,
    Core room　1,000㎏／㎡
    Ceiling height
    2,700mm
    Interior
    Floor／Tile carpeting（Free access H／100mm）
    Walls／Coated finish,
    Ceiling／Stone wool soundproof boards（system ceilings）
Prize Winning History
  • ・Good Design Award in Architecture／Environmental Design category in 2001, Japan Industrial Design Promotion Organization
  • ・Chairman’s Award for Achievement in Recycling in 2001, Recycling Promotion Association
  • ・Category in Building Mechanical Service System[2002]
  • ・Good Design Award in Architecture／Environmental Design category in 2003, Japan Industrial Design Promotion Organization
  • ・45th BCS Award in 2004, Building Contractors Society
  • ・DBJ Green Building Certification for 2011 Assessment Rank: Gold, Development Bank of Japan
